Study Browser

The Study Browser is a component that allows users to browse and manage studies.

studyBrowser.studyMode

IDstudyBrowser.studyMode
Description
Controls the study browser mode to determine whether to show all studies (including prior studies) or only the current study.
Default Value
'all'
Example

window.config = {
  // rest of window config
  customizationService: [
    {
      'studyBrowser.studyMode': {
         $set: 'primary', // or recent
      },
    },
  ],
};

studyBrowser.viewPresets

IDstudyBrowser.viewPresets
Description
Defines the view presets for the study browser, such as list or thumbnail views.
Default Value
[
  {
    "id": "list",
    "iconName": "ListView",
    "selected": false
  },
  {
    "id": "thumbnails",
    "iconName": "ThumbnailView",
    "selected": true
  }
]
Example

window.config = {
  // rest of window config
  customizationService: [
    {
      'studyBrowser.viewPresets': {
        $set: [
          {
            id: 'list',
            iconName: 'ListView',
            selected: true, // Makes the list view the default selected option
          },
          {
            id: 'thumbnails',
            iconName: 'ThumbnailView',
            selected: false,
          },
        ],
      },
    },
  ],
};

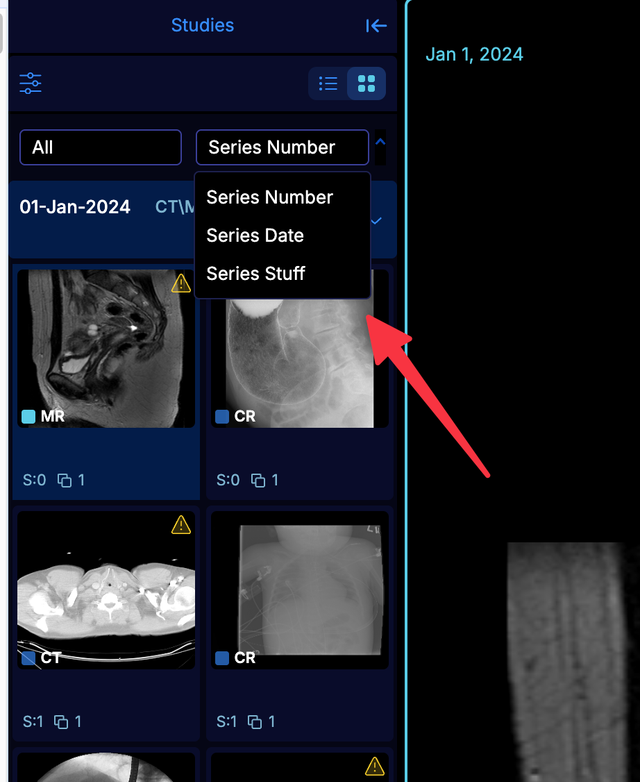

studyBrowser.sortFunctions

IDstudyBrowser.sortFunctions
Description
Sorting options for study browser items.
Default Value
[
  {
    "label": "Series Number"
  },
  {
    "label": "Series Date"
  }
]
Example

window.config = {
  // rest of window config
  customizationService: [
    {
      'studyBrowser.sortFunctions': {
        $push: [
          {
            label: 'Series Stuff',
            sortFunction: (a, b) => Stuff,
          },
        ],
      },
    },
  ],
};

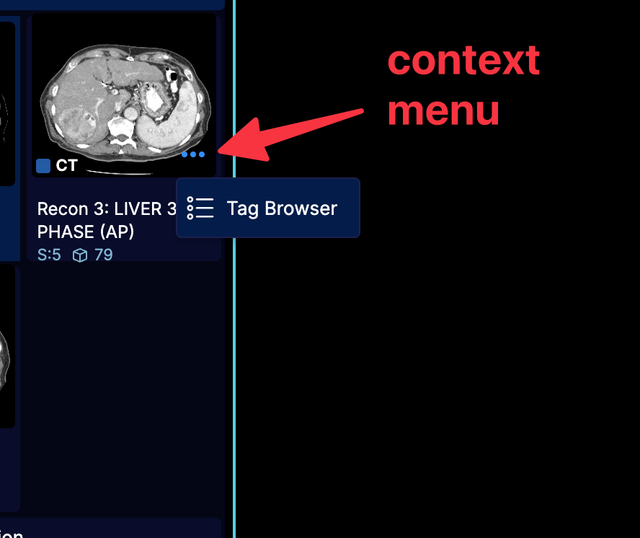

studyBrowser.thumbnailMenuItems

IDstudyBrowser.thumbnailMenuItems
Description
Defines the menu items available in the thumbnail menu items of the study browser.
Default Value
[
  {
    "id": "tagBrowser",
    "label": "Tag Browser",
    "iconName": "DicomTagBrowser",
    "commands": "openDICOMTagViewer"
  }
]
Example

window.config = {
  // rest of window config
  customizationService: [
    {
      'studyBrowser.thumbnailMenuItems': {
        $set: [
          {
            id: 'tagBrowser',
            label: 'Tag Browser',
            iconName: 'DicomTagBrowser',
            commands: 'openDICOMTagViewer',
          },
          {
            id: 'deleteThumbnail',
            label: 'Delete',
            iconName: 'Delete',
            commands: 'deleteThumbnail',
          },
          {
            id: 'markAsFavorite',
            label: 'Mark as Favorite',
            commands: 'markAsFavorite',
          },
        ],
      },
    },
  ],
};

studyBrowser.thumbnailDetails

IDstudyBrowser.thumbnailDetails
Description
The items on the detail line of a study browser thumbnail, under the modality and series description. Declared the same way as the viewport overlay items: each has an `id`, an optional `condition` deciding whether to include it, and a value taken from its `contentF`, from a named `source`, or from an `attribute` of the instance the display set shows. `label` prefixes the value, `title` is its tooltip, and `iconName` puts an icon before it. An item with no value is left out. `condition` and `iconName` may each be a function or a name, so the whole line can be declared as data - see `studyBrowser.thumbnailDetailSources` and `studyBrowser.thumbnailDetailTests` for the names, and `?customization=studyBrowser/derivedDateTime` for an example of adding the creation date/time that derived series are sorted by. An item naming a source or test that is not registered is left out with a warning; if that leaves no items at all, the thumbnail keeps its default detail line rather than showing an empty one.
Default Value
[
  {
    "id": "SeriesNumber",
    "label": "S:",
    "source": "seriesNumber"
  },
  {
    "id": "InstanceCount",
    "source": "numInstances"
  }
]
Example

window.config = {
  // rest of window config
  customizationService: [
    {
      'studyBrowser.thumbnailDetails': {
        $push: [
          {
            id: 'InstanceDateTime',
            // Named source and test, so this can also be written in a
            // ?customization= JSONC file, which is data and never executed.
            source: 'instanceDateTime',
            condition: 'isDerivedDisplaySet',
            title: 'Created',
          },
          {
            // Or supply the functions directly.
            id: 'BodyPart',
            label: 'Part:',
            attribute: 'BodyPartExamined',
            condition: ({ displaySet }) => displaySet.Modality === 'CT',
          },
        ],
      },
    },
  ],
};

studyBrowser.thumbnailDetailSources

IDstudyBrowser.thumbnailDetailSources
Description
Named value sources a `studyBrowser.thumbnailDetails` item can point at with `source`, instead of supplying a `contentF` function. Each is called with `{ displaySet, instance, formatters }`, where `instance` is the instance the display set shows. `instanceDateTime` is the creation date/time that the series list is sorted by, formatted to the minute. Add to it with `$merge`, as a `$set` replaces the whole registry and so takes away the sources the default items name.
Default Value
{
  "instanceDateTime": "(the creation date/time, see getLatestInstanceDateTime)"
}
Example

window.config = {
  // rest of window config
  customizationService: [
    {
      'studyBrowser.thumbnailDetailSources': {
        $merge: {
          seriesDescription: ({ displaySet }) => displaySet.SeriesDescription,
        },
      },
    },
  ],
};

studyBrowser.thumbnailDetailTests

IDstudyBrowser.thumbnailDetailTests
Description
Named tests a `studyBrowser.thumbnailDetails` item can point at with `condition`, instead of supplying a function. Each is called with the same properties as a source and returns whether to include the item.
Default Value
{}
Example

window.config = {
  // rest of window config
  customizationService: [
    {
      'studyBrowser.thumbnailDetailTests': {
        $merge: {
          isMultiframe: ({ displaySet }) => displaySet.isMultiFrame,
        },
      },
    },
  ],
};

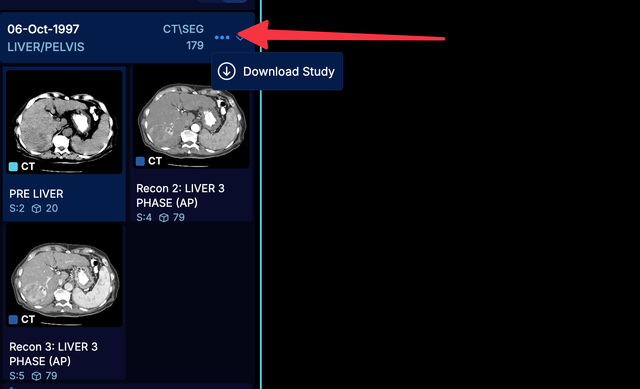

studyBrowser.studyMenuItems

IDstudyBrowser.studyMenuItems
Description
Defines the menu items available in the study menu items of the study browser.
Default Value
[]
Example

window.config = {
  // rest of window config
  customizationService: [
    {
      'studyBrowser.studyMenuItems': {
        $set: [
          {
            id: 'downloadStudy',
            label: 'Download Study',
            iconName: 'Download',
            commands: () => {
              console.debug('downloadStudy');
            },
          },
        ],
      },
    },
  ],
};

studyBrowser.thumbnailDoubleClickCallback

IDstudyBrowser.thumbnailDoubleClickCallback
Description
Defines the callback function for when the user double clicks a series on the study browser.
Default Value
{
    callback: ({
            activeViewportId,
            servicesManager,
            isHangingProtocolLayout
        }) =>
        async displaySetInstanceUID => {
            const {
                hangingProtocolService,
                viewportGridService,
                uiNotificationService
            } =
            servicesManager.services;
            let updatedViewports = [];
            const viewportId = activeViewportId;

            try {
                updatedViewports = hangingProtocolService.getViewportsRequireUpdate(
                    viewportId,
                    displaySetInstanceUID,
                    isHangingProtocolLayout
                );
            } catch (error) {
                console.warn(error);
                uiNotificationService.show({
                    title: 'Thumbnail Double Click',
                    message: 'The selected display sets could not be added to the viewport.',
                    type: 'error',
                    duration: 3000,
                });
            }

            commandsManager.run({
              commandName: 'setDisplaySetsForViewports',
              commandOptions: { viewportsToUpdate: updatedViewports },
            });
        },
}
Example

window.config = {
    // rest of window config
    customizationService: [{
        'studyBrowser.thumbnailDoubleClickCallback': {
            callback: ({
                    activeViewportId,
                    commandsManager,
                    servicesManager,
                    isHangingProtocolLayout
                }) =>
                async displaySetInstanceUID => {
                    const {
                        hangingProtocolService,
                        viewportGridService,
                        uiNotificationService
                    } =
                    servicesManager.services;

                    let updatedViewports = [];
                    const viewportId = activeViewportId;

                    // Changing original function here:
                    if (isBlacklistedModality(displaySetInstanceUID)) {
                        return;
                    }

                    try {
                        updatedViewports = hangingProtocolService.getViewportsRequireUpdate(
                            viewportId,
                            displaySetInstanceUID,
                            isHangingProtocolLayout
                        );
                    } catch (error) {
                        console.warn(error);
                        uiNotificationService.show({
                            title: 'Thumbnail Double Click',
                            message: 'The selected display sets could not be added to the viewport.',
                            type: 'error',
                            duration: 3000,
                        });
                    }
                  commandsManager.run({
                    commandName: 'setDisplaySetsForViewports',
                    commandOptions: { viewportsToUpdate: updatedViewports },
                  });
                };
        },
    }],
};

instanceSortingCriteria

IDinstanceSortingCriteria
Description
Defines the instance sorting criteria to sort the images
Default Value
{
    sortFunctions: {},
    defaultSortFunctionName: '',
  }
Example

window.config = {
  // rest of window config
  customizationService: [
   {
      'instanceSortingCriteria': {
        $set: {
          sortFunctions: {
            sort: (a, b) => {}
          },
          defaultSortFunctionName: 'sort',
        },
      },
    }
  ],
};
